QFE and Shor's Algorithm

Quantum Phase Estimation

There are some special vectors, called eigenvectors, where applying the $X$ gate results in the exact same vector, multiplied by a by a number called an eigenvector. For example, $\ket{+}$ is an eigenvector of the $X$ gate.

$$X\ket{+} = \begin{pmatrix} 0 & 1 \\1 &0 \end{pmatrix} \begin{pmatrix} \frac{1}{\sqrt{2}} \\ \frac{1}{\sqrt{2}} \end{pmatrix} = \begin{pmatrix} \frac{1}{\sqrt{2}} \\ \frac{1}{\sqrt{2}} \end{pmatrix} = \ket{+}$$

The goal of phase estiamtion is:

Given a unitary matrix $U$ and an eigenvector $\ket{\psi}$, find $\phi$ such that $U\ket{\psi} = e^{i\phi}\ket{\psi}$

Represnting the phase
From binary number to decimal number:

$$\frac{a_1}{2} + \frac{a_2}{4} + \dots + \frac{a_n}{2^n} = 0.a_1a_2\dots a_n$$

Shor's algorithm

Period Finding periodic function

$$f(x) = a^x mod N$$

where a and N are positve integers, a is less than N, and they have no common factors. The period, or order($r$), is the Smallest (non zero) integer such that:

$$a^r mod N = 1$$

Shor's solution was to use quantum phase estimation on the unitary operator:

$$U|y \rangle \equiv |ay \ mod \ N \rangle$$

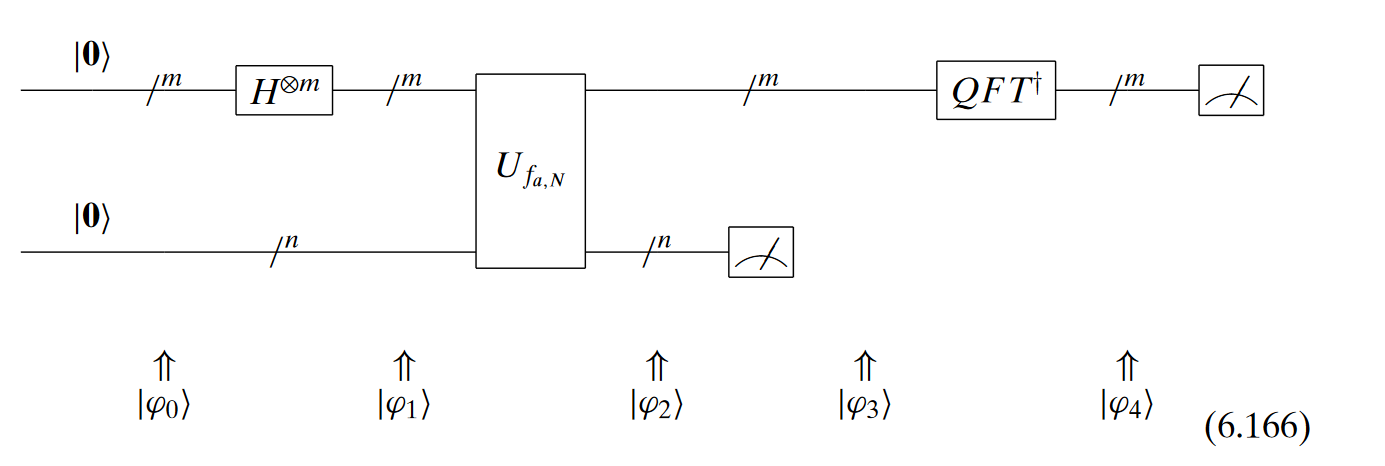

Shor's Algorithm in quantum circuit

Measurement outcome

• Upper register m: outputs binary number to find r

• Lower register: n: outputs outcome of $f_{a,N}$

m: outcome M: number of qubits in upper register

$$\frac{k}{r} = \frac{m}{2^M}$$

Quantum states during the circuit

$$|\psi_0 \rangle = |0_m , 0_n \rangle$$

$$| \psi_1 \rangle = \frac{\sum_{x \in \{0,1\}^m} |x, 0_n \rangle}{\sqrt{2^m}}$$

$$|\psi_2 \rangle = \frac{\sum_{x \in \{0,1\}^{m}} | x, a^x \text{Mod N} \rangle}{\sqrt{2^m}}$$

·

$$|\psi_3\rangle = \frac{\sum_{j=0}^{2^m/r - 1} |t_0 + jr, a^{\bar{x}} \, \text{Mod} \, N \rangle}{\left\lfloor \frac{2^m}{r} \right\rfloor}$$

Example For N = 15, we will have n = 4 and m = 8. For a = 13, the state $|\psi2\rangle$ will be

$$\frac{|0, 1\rangle + |1, 13\rangle + |2, 4\rangle + |3, 7\rangle + |4, 1\rangle + \dots + |254, 4\rangle + |255, 7\rangle}{\sqrt{256}}$$

After measurement of the bottom qubits, 7 is found

$$\frac{|3, 7\rangle + |7, 7\rangle + |11, 7\rangle + |15, 7\rangle + \dots + |251, 7\rangle + |255, 7\rangle}{\left[ \frac{256}{4} \right]} \$$
